GRAPHITE CRUCIBLE (ALUMINUM)

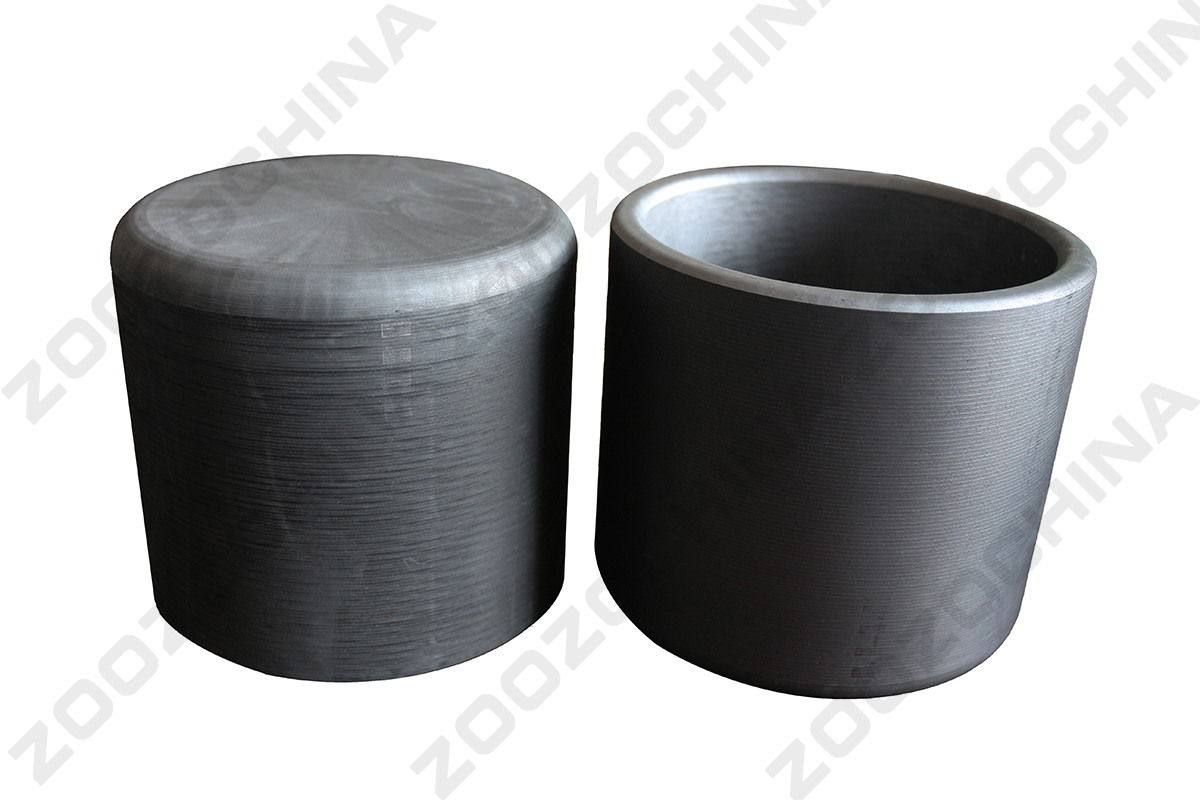

Graphite Crucible (for melting aluminum)
Graphite crucible can withstand the high temperature, and has good resistance to chemical erosion and thermal shock. Compared to other metals, melting aluminum needs much higher requirements.Our graphite crucible is especially good at melting aluminum.
Our products have antioxidant properties, no overflow, no crack, no leakage of aluminum liquid，good stability, no pinholes.The evaporation is good, the working life is long, the average furnace reached 18600 meters / roll 40 - 50 furnace, 24000 meters / roll 30 - 40 furnace , times of furnace have been greatly improved.
Quick Details

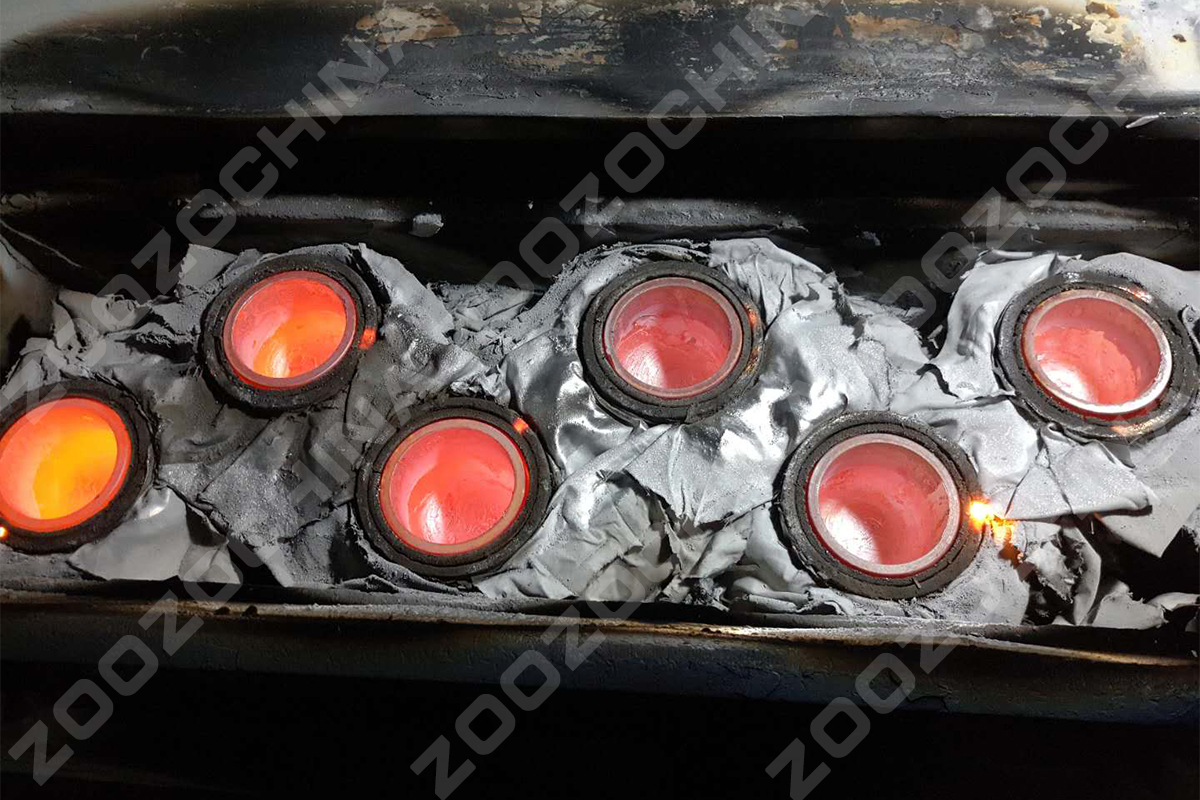

Application:aluminum evaporation coating on polyester film
Height: OD:135mm Height120mm
Composition:High Pure
Place of Origin:Anhui,China
Brand Name:Zoozo
Size:
OD | ID | HEIGHT | THICKNESS |
135mm | 115mm | 120mm | 10mm |
Specification :
Property | Unit | Value |
BULK DENSITY | g/cm3 | 1.95min |
GRAIN SIZE | μm | 43 max |
ELECTRICAL RESISTVITY | μ.Ω.m | 8.9 max |
COMPRESSION STRENGTH | MPa | 125 min |
FLEXURAL STRENGTH | MPa | 68 min |
SHORE HARDNESS | -- | 65 min |
ASH CONTENT | % | 0.046 max |
Packing & Delivery

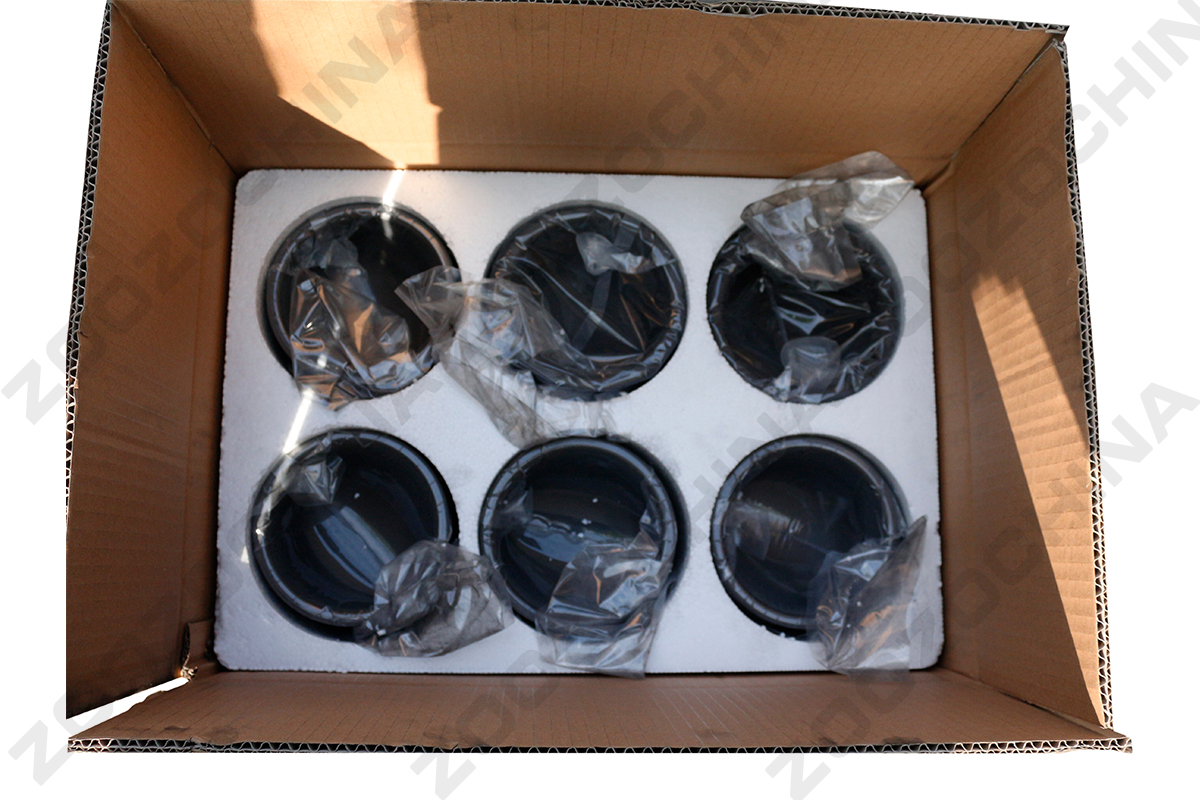

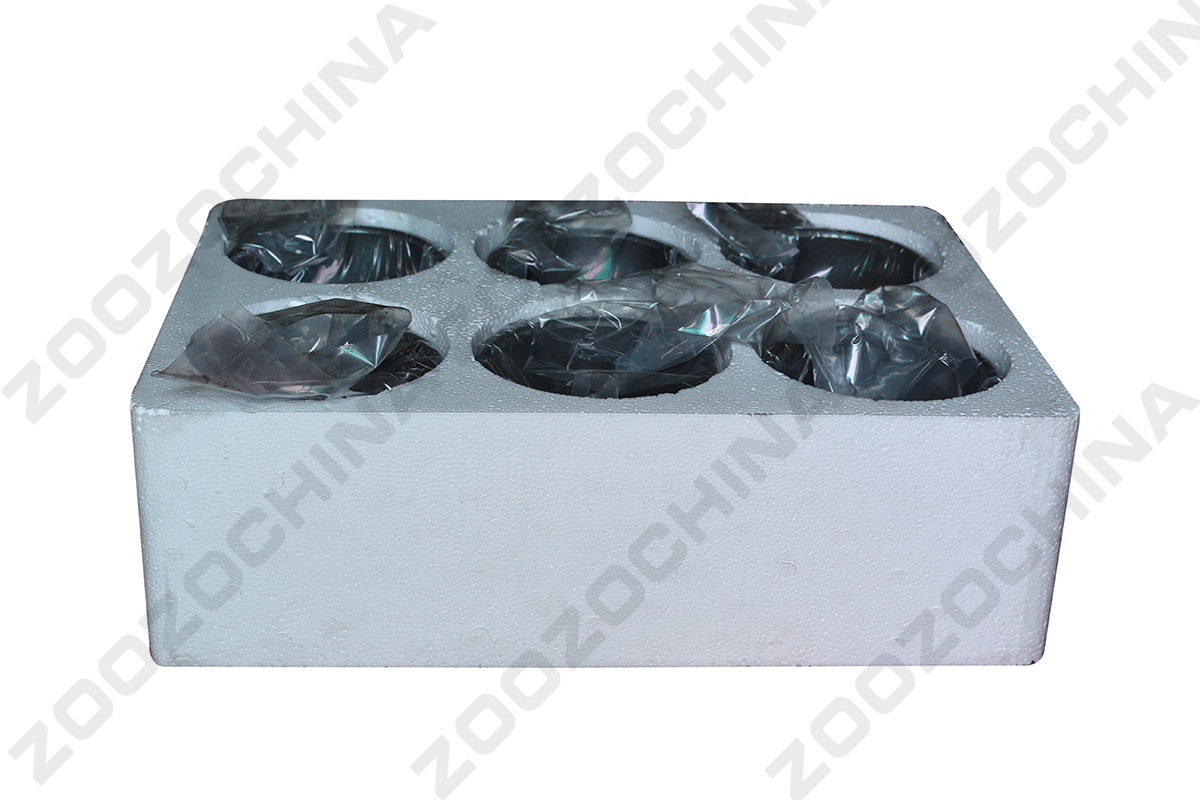

Packaging Details:export standard packing, carton:51*36*36CM
Delivery Detail: Within 10-15 working days after confirming order
Sea Port:Shanghai,China
* High temperature resistance, and the melting point is 3850±50°C, the boiling point is 4250.
* Low ash content, high purity, avoiding pollution to your products.
* Graphite material is easily to machine into any shapes you like.
* High mechanical strength
* Good sliding properties
* High thermal conductivity
* High thermal shock and chemical resistance
* Food safety
* Low wettability
* High corrosion resistance and oxidation resistance
* Good electrical conductivity
* High density and high mechanical strength
* Proper electrical conductivity
Packing & Delivery
Packaging Details:export standard packing
Delivery Detail: Within 10-15 working days after confirming order
Port:Shanghai,China
Lead Time :within 10-15 working days after confirm order
