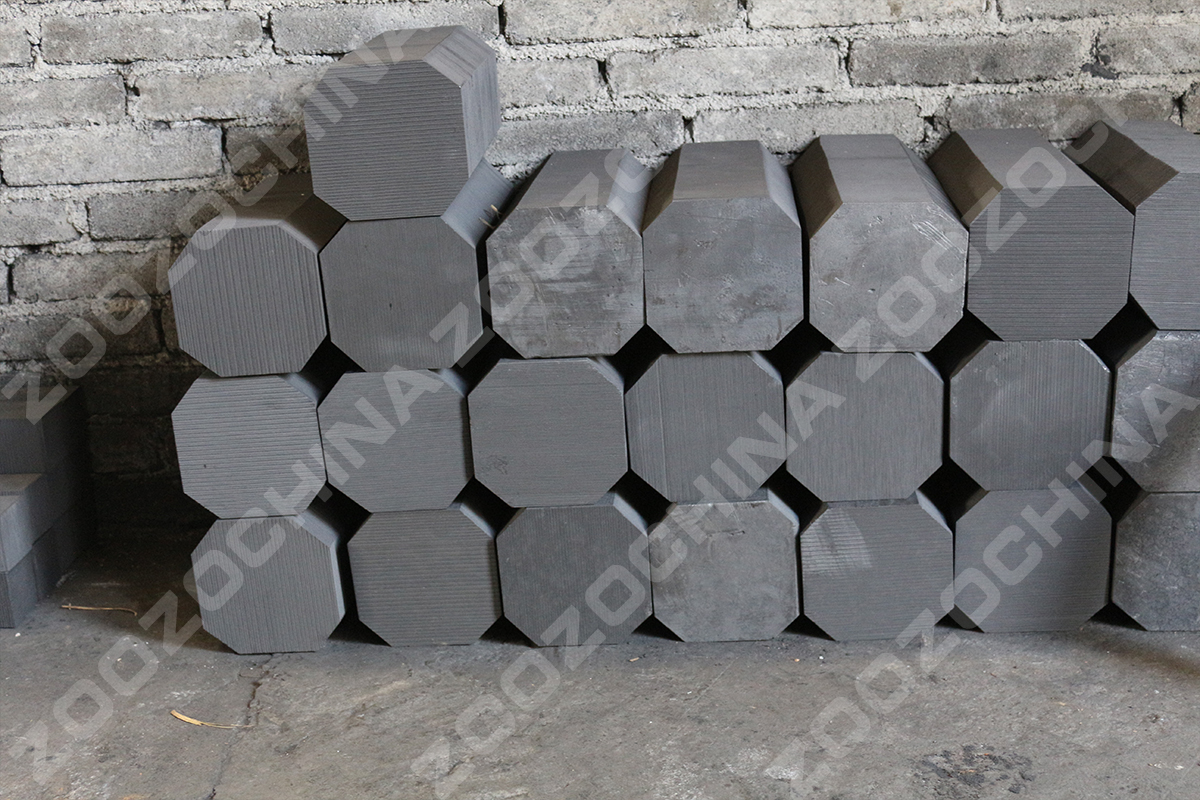

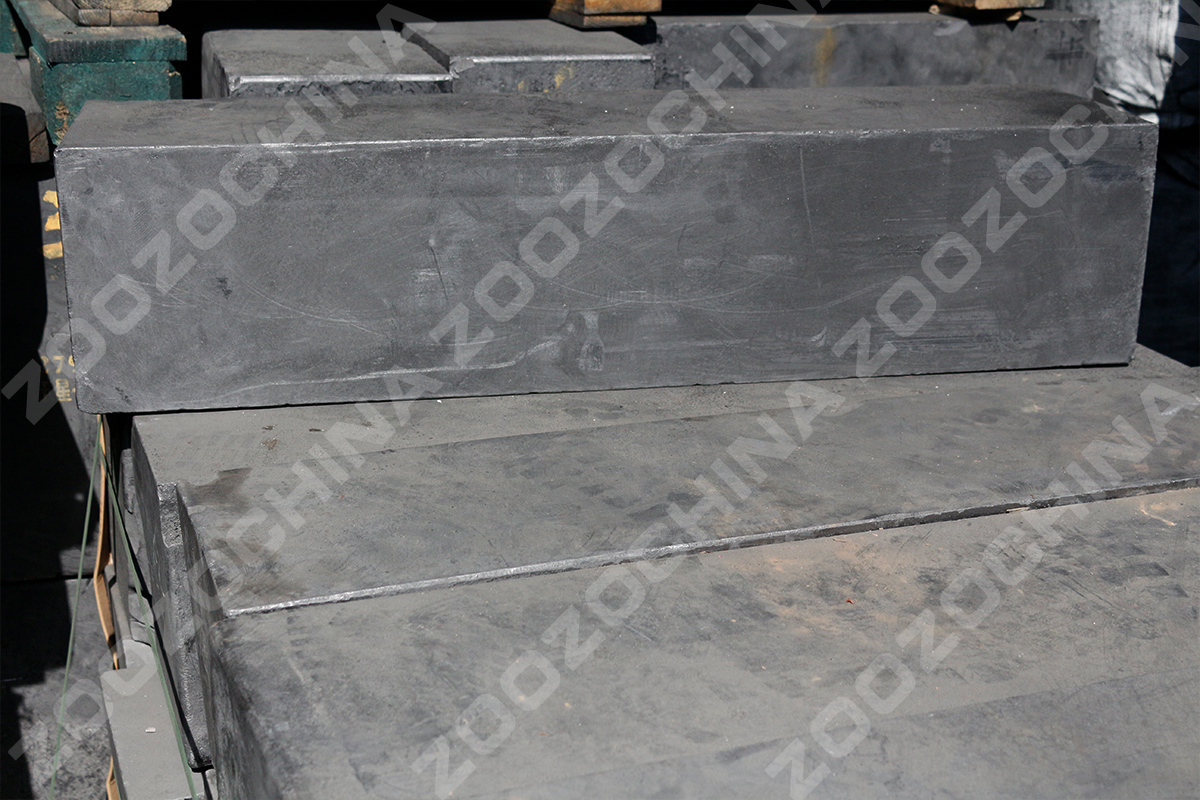

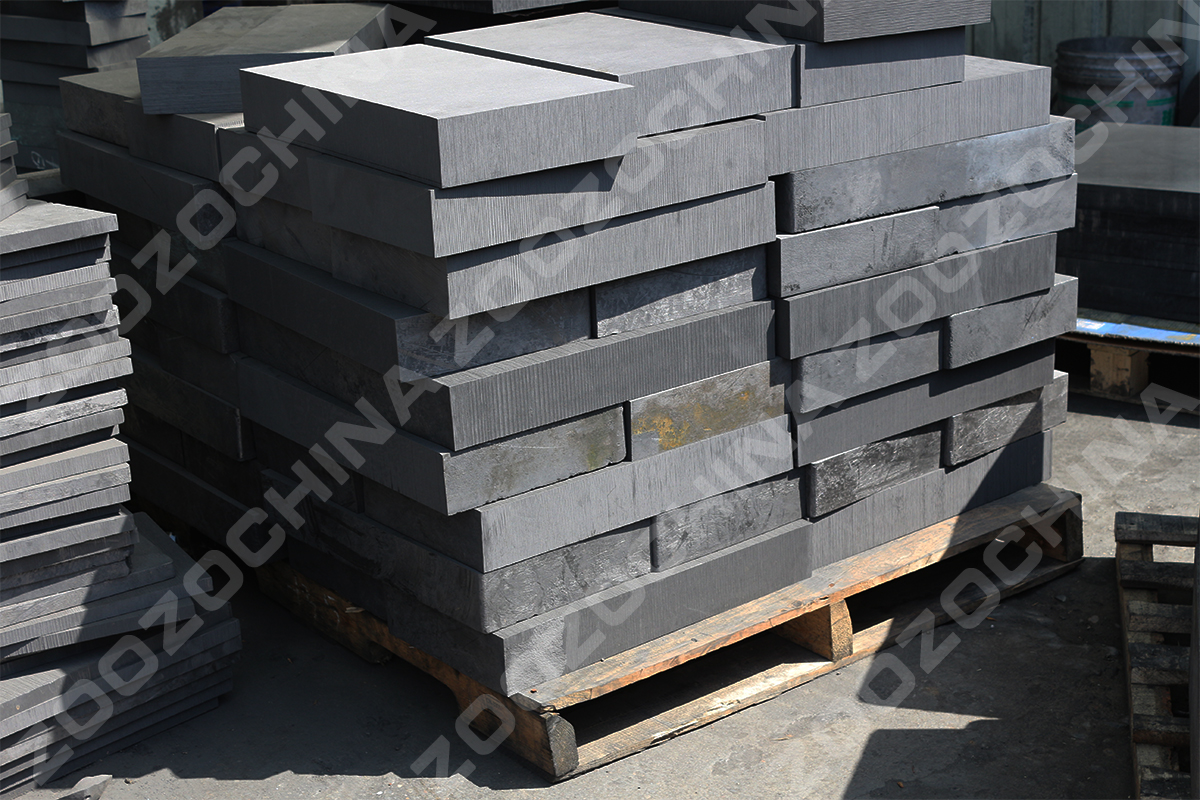

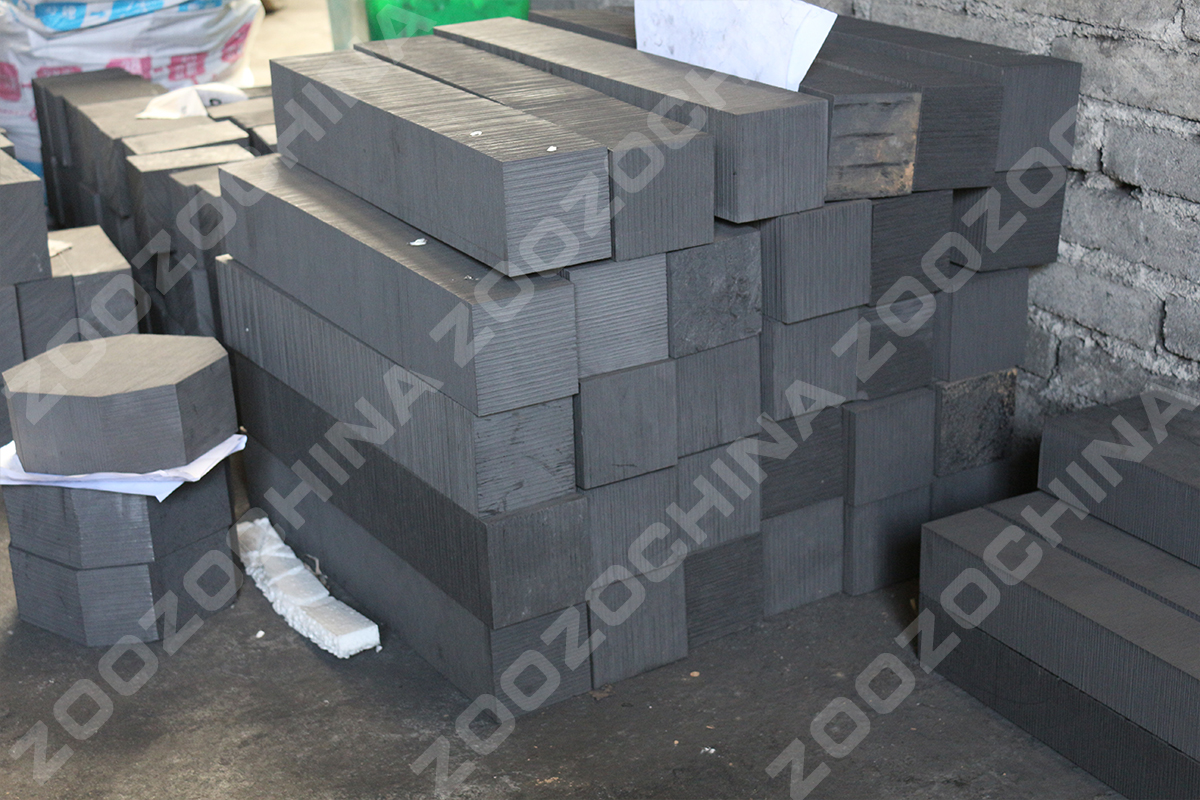

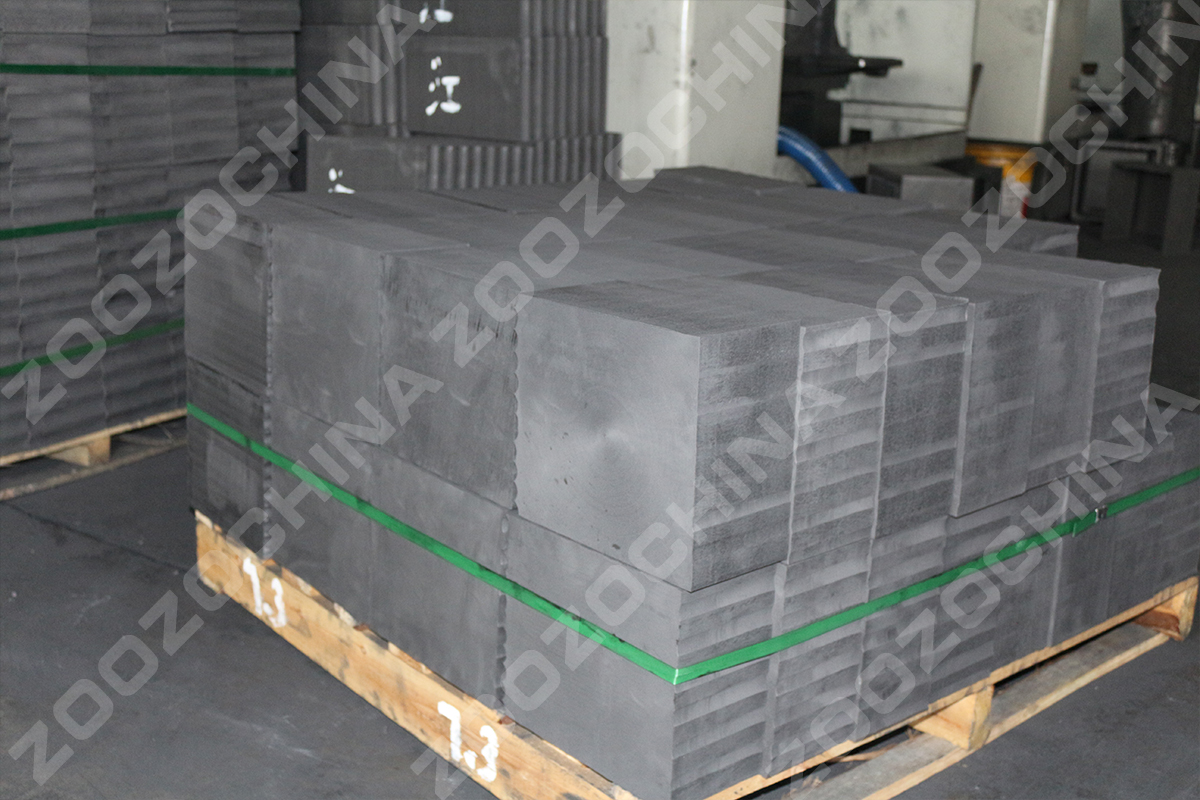

GRAPHITE BLOCK
Production introduce
The main physical and chemical properties of graphite blocks have reached: compressive strength 125MPa, a Shore hardness of 65 degrees, the resistivity 12μΩm. Producing more than 800mm diameter, particle size less than 18 microns large-sized enterprise isostatic graphite products, leads the large size of graphite products, to meet the needs and improve the domestic and other isostatic graphite products share.
Packing & Delivery
Packaging:export standard packing. Delivery Detail: 15 working days after confirming order.
Sea Port:Shanghai,China
Features:
1 High flexural strength and high compressive strength
2 High temperature resistance
3 Good heat shock resistance
4 Anti-oxidation
5 Strong corrosion resistance to acid and alkali
6 Abrasion resistance
7 Good electric conductivity and thermal efficiency
8 Excellent chemical stability
9 Self-lubrication
Material index
high pure graphite | ||||
Item | Unit | baked twice | baked three time | baked four times |
impregnated once | impregnated twice | Impregnated three times | ||
grain size | mm | ≤325mesh | ≤325mesh | ≤325mesh |
Bulk density | g/cm3 | ≥1.68 | ≥1.78 | ≥1.85 |
Specific resistance | μΩ.m | ≤14 | ≤14 | ≤13 |
Bending strength | MPa | ≥25 | ≥40 | ≥45 |
Compressive strength | MPa | ≥50 | ≥60 | ≥65 |
Ash content | % | ≤0.15 | ≤0.1 | ≤0.05 |
Item | Unit | Material 1 | Material 2 |
Max Grain size | mm | 0.8 | 0.8 |
Bulk Density | g/cm3 | ≥1.70 | ≥1.73 |
Electric Resistance | μΩ.m | ≤8.5 | ≤8 |
Bending Strength | MPa | ≥10 | ≥12 |
Compressive Strength | MPa | ≥24 | ≥31 |
Thermal Conductivity | W/(m.K) | ≥120 | ≥130 |
10/℃ | ≤2.5 | ≤2.5 | |
Ash Content | % | ≤0.3 | ≤0.3 |
